Simple Plug and Play System
The S4 Series is Trantec's simplest plug and play system, designed to launch you in to the world of wireless.
Flexible

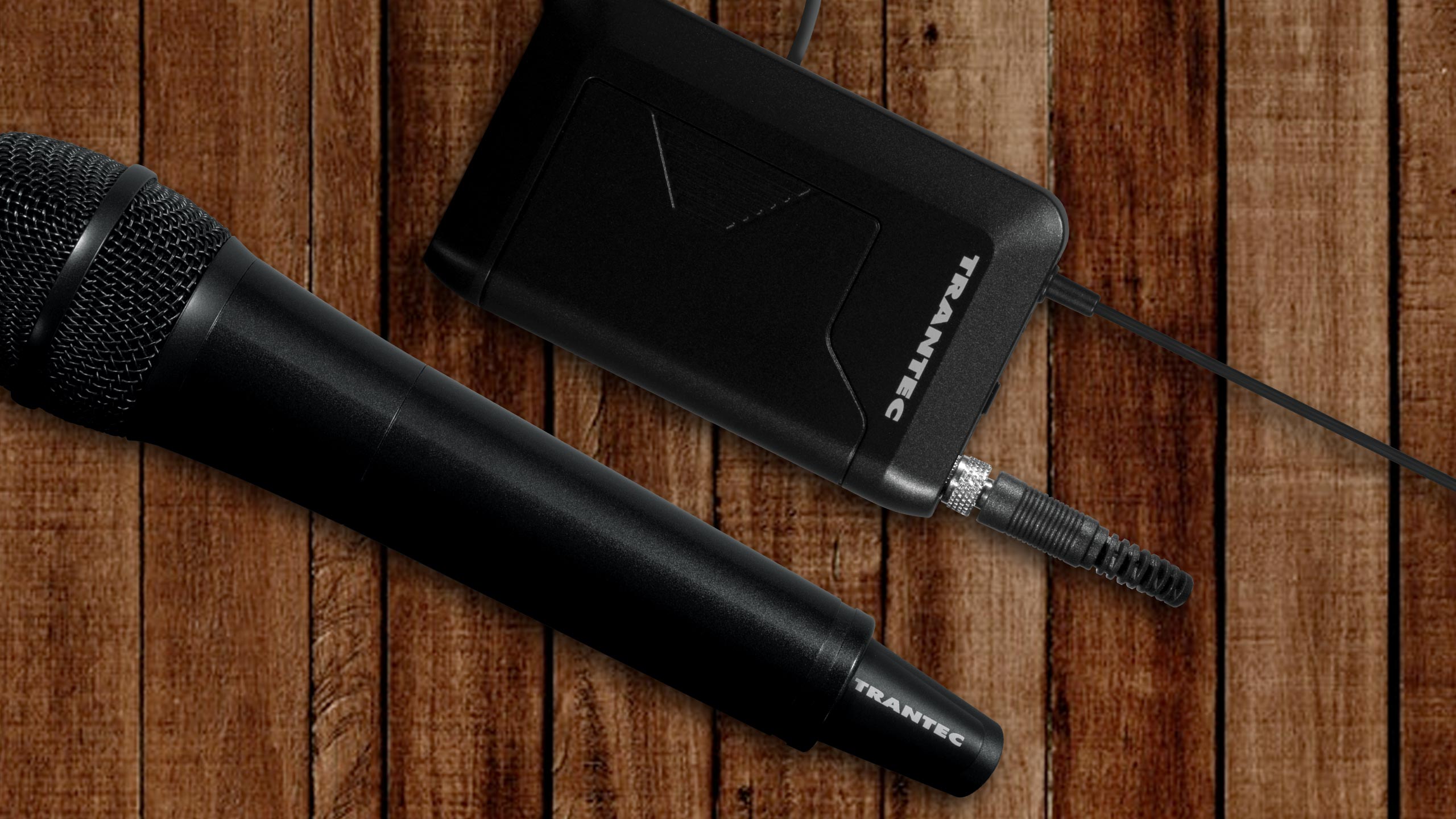

It’s rugged and compact frames hold a reliable multi-functioning system that is optimised for use with a range of microphones from handheld, to lapels, to headsets, or alternatively can be used with a musical instrument.
Power Indicator
The power indicator helps to check power status easily
Compatibility
S4 series has balanced XLR socket and unbalanced 1/4″ phone jack, easy to install in your sound system
Power Efficient
Up to 8 hours of continuous use with single AA alkaline battery
S4 SERIES SPECIFICATIONS
-
S4.04 Wireless Set
Frequency Range
506 ~ 937.5 MHz
Pilot tone
32.768 kHz
Modulation system
FM, PLL synthesizer
Total harmonic distortion
< 1% (1kHz)
Channel selectable
4ch
Active Channels
4ch
Fuction
IR sync, Channel scan, Battery life indicator
Audio output
Balanced (XLR socket) : -20dBu
Un-balanced (1/4 inch jack socket) : 10dBu -
S4.10 Wireless Set
Frequency range
506 ~ 937.5 MHz
Pilot tone
32.768 kHz
Modulation system
FM, PLL synthesizer
Total harmonic distortion
< 1% (1kHz)
Channel selectable
16ch
Active channels
16ch
Fuction
IR sync, Channel scan, Battery life indicator
Audio output
Balanced (XLR socket) : -20dBu
Un-balanced (1/4 inch jack socket) : 10dBu -
S4.10-HD2 Wireless Set
Frequency range
506 ~ 937.5 MHz
Pilot tone
32.768 kHz
Modulation system
FM, PLL synthesizer
Total harmonic distortion
< 1% (1kHz)
Channel selectable
16ch
Active channels
16ch
Fuction
IR sync, Channel scan, Battery life indicator
Audio output
Balanced (XLR socket) : -20dBu
Un-balanced (1/4 inch jack socket) : 10dBu -
S4 Handheld Transmitter
Capsule type
Dynamic with cardioid pattem
Battery
1 AA size alkaline battery, 1.5 V
RF carrier power
< 10 mW
Battery life
Approx. 8 hours
Audio input Level
140 dB SPL
Dimensions
φ55 x 250 mm
Audio frequency response
80 ~ 15000 Hz
Weight
approx. 245 g (with battery)
-
S4 Beltpack Transmitter
Capsule type
Lavalier condenser microphone
Battery
1 AA size alkaline battery, 1.5 V
RF carrier power
< 10 mW
Battery life
Approx. 8 hours
Audio input Level
-6 dBV，mic gain 0dB
Dimensions
62(W) x 100(H) x 25(D) mm
Audio frequency response
50 ~ 15000 Hz
Weight
approx. 85 g (with battery)
